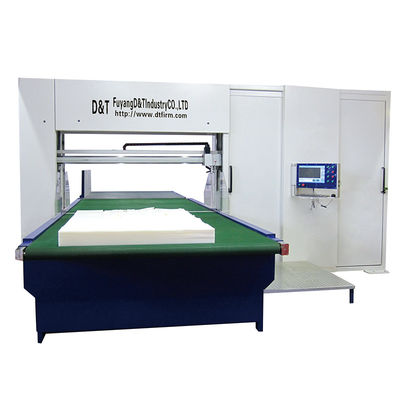

Accuracy Precision endless cutting CNC Foam Cutting Machine with 60m/m
CNC Vertical Revolving contour cutting machine(with conveyor) is applied for mattress ,furniture, packaging and automotive industry .
It can cut many foam materials such as mesh sponge ,rebonded foam, flexible foam, latex foam, filter cotton ,high-density cotton, sofa cotton , sound insulation cotton, sound absorbing cotton and complex material.
All 2D or 3D shapes can be cut. All of the cutting movement is totally controlled by computer , It will reduce large amount of human resources and improve the production efficiency.It can save more power and material consumption .
Technology Data:
| TECHNICAL DATA | |
| Type | DTC-R2012V |
| Max. Product Sizel | L2800x W2200 x H1000 |
| Vertical Cutting Blade | 2300*3*0.5mm |
| Control System | Industrial Computer+Windows XP with D&T Profiler |
| Cutting Speed | 0~10m/min(adjustable) |
| Power | 11kw,380v,50hz |
| Blade Tension | Cylinder Tensioning 6 Bar |
| Overall Weight | 2000kg |
| Overall Dimension | 5800*3180*2400mm |
Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC foam Cutting machine,
polyurethane cutting machine, quilting machine and foam relation assistant
equipments.
Through the research of our engineers, our cutting machine had connected well with
the popularized CAD and achieved automation and high efficiency,
high accuracy and makes it easy to operate.
We always put the customer on the first place and make utmost efforts to satisfy
you.We wholeheartedly look forward to developing economic,
technical and trade cooperation with you.
Products: Fast wire cutting machine, pu cutting machine,
hot wire cutting machine, eps cutting machine,
quilting machine and so on.
1. Q:Are you a factory ?
A:Yes,We are a manufacturer and doing the foam machines since 2006.
2. Q: Which drawing software do you use?
A: Auto CAD.
3. Q: Whether your engineer can come to our factory for installation of the machine?
A: Yes, sure.
4. Q: Can you import DXF files from another source?
A : yes. Any DXF files is acceptable.
5. Q:The other fast wire machine had dust extraction and filtering. Does this machine also have dust extraction?
A : Yes, include it.
6. Q: What countries have you sold to?
A: Canada,Mexico,Brazil,Australia,Singapore,Malaysia,UAE,Yemen,Qatar,Algeria etc.
7. Q: What safety controls are on the machine?
A: There are urgence bottoms on the control box and machine for accident to stop the mahicne.
There are two fence around the cutting frame, the machine will stop when you open the fence.
